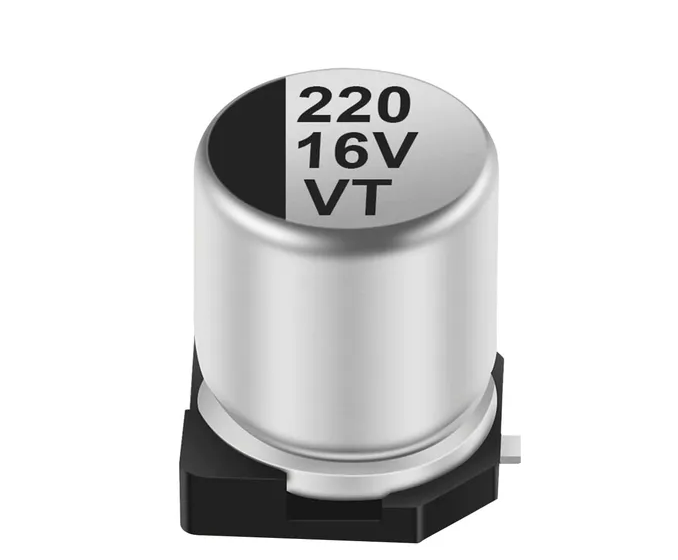

220UF 16V SMD CAPACITOR ELECTROLYTIC

Product Overview

A standard surface-mount aluminum electrolytic capacitor (V-chip style) designed for broad use in electronic circuits. Providing a solid balance of bulk energy storage and a low-profile footprint, it is heavily utilized for smoothing, filtering, and buffering on low-voltage power rails (such as 3.3V, 5V, or 12V lines) in consumer electronics, automotive applications, and industrial control boards.

Core Specifications

• Manufacturer: Generic / Various (e.g., Panasonic, Nichicon, Rubycon, or value brands)

• Component Type: Aluminum Electrolytic Capacitor

• Capacitance: 220 µF (Microfarads)

• Voltage Rating: 16V DC

• Tolerance: Typically ±20%

• Package / Case Size: V-Chip Base Plate (Typically 6.3mm Diameter x 5.4mm or 7.7mm Length, depending on the specific series)

• Mounting Type: Surface Mount Device (SMD)

• Polarity: Polarized (Requires strict attention to the positive/negative orientation during assembly)
