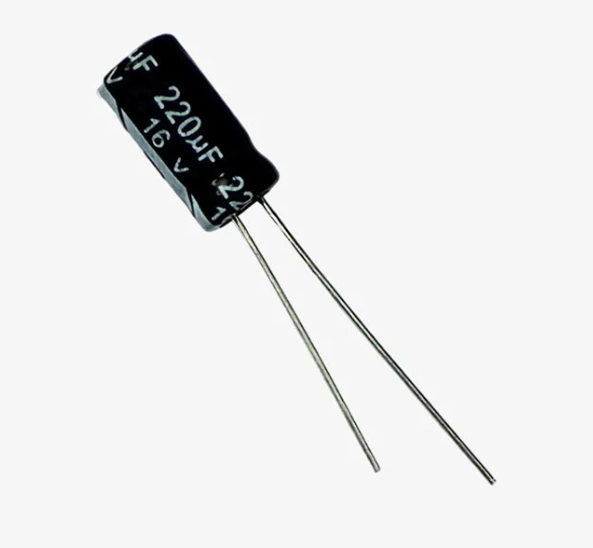

220uF 16V Electrolytic Capacitor Samwha 85C 220uF 16V

Product Overview

The Samwha 220µF 16V electrolytic capacitor is a polarized, radial leaded through-hole component. Belonging to Samwha’s reliable general-purpose lines (such as the standard SD Series), this miniature capacitor is designed for DC voltage decoupling, signal filtering, and intermediate power smoothing.

Its compact size and 220µF capacity make it an ideal fit for secondary filtering stages in small power adapters, audio coupling sub-circuits, toy electronics, and low-voltage DC regulators.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 220µF (Microfarads)

• Voltage Rating: 16V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max (Standard SD variant)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 6.3mm Diameter x 11mm Height

• Lead Pitch (Spacing): 2.5mm
