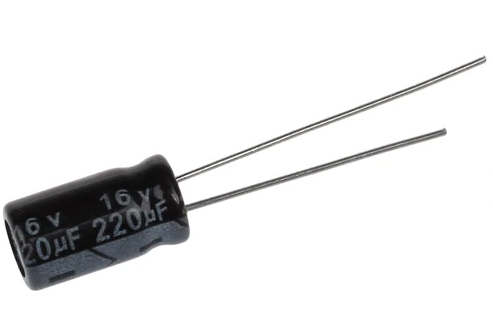

220uF 16V Electrolytic Capacitor DC JWCO 105C 6.3x12MM 220uF 16V

Product Overview

The JWCO 220µF 16V electrolytic capacitor is a polarized, radial leaded through-hole component. Featuring an upgraded 105°C thermal rating, this capacitor is engineered for DC voltage decoupling, power rail smoothing, and low-to-medium frequency ripple current filtering in low-voltage circuits.

With its compact 6.3x12mm physical footprint, it balances a generous 220µF capacitance with a small form factor, making it an excellent choice for space-constrained power supply outputs, consumer electronics, and logic boards operating on standard low-voltage lines.

Core Specifications

• Manufacturer: JWCO (Jiaweicheng Electronics)

• Capacitance: 220µF (Microfarads)

• Voltage Rating: 16V DC

• Tolerance: ±20%

• Temperature Rating: Up to 105°C (High-Temperature Grade)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 6.3mm Diameter x 12mm Height

• Lead Pitch (Spacing): 2.5mm
