220uF 10V RVT1A221M0605 SMD Electrolytic Capacitors ACMECON±20% RVT1A221M0605

Product Overview

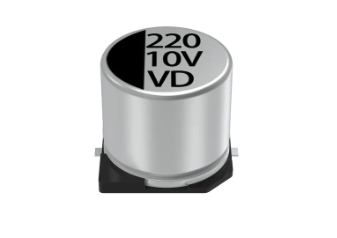

A miniature, low-profile surface-mount aluminum electrolytic capacitor (V-chip style) manufactured by ACMECON. Part of the widely standard RVT series, this component is rated for stable performance at temperatures up to 105°C. Its compact 5.4mm height makes it an excellent choice for space-constrained, low-profile electronic designs requiring localized energy storage, bulk decoupling, and voltage smoothing on low-voltage digital power rails.

Core Specifications

• Manufacturer: ACMECON

• Part Number: RVT1A221M0605

• Component Type: Aluminum Electrolytic Capacitor (RVT Series)

• Capacitance: 220 µF (Microfarads)

• Voltage Rating: 10V DC

• Tolerance: ±20% (M Tolerance Code)

• Package / Case Size: D6.3 x L5.4 mm (6.3mm Base Diameter by 5.4mm Can Height; Size Code: 0605)

• Mounting Type: Surface Mount Device (SMD) / V-Chip Base Plate

• Polarity: Polarized
