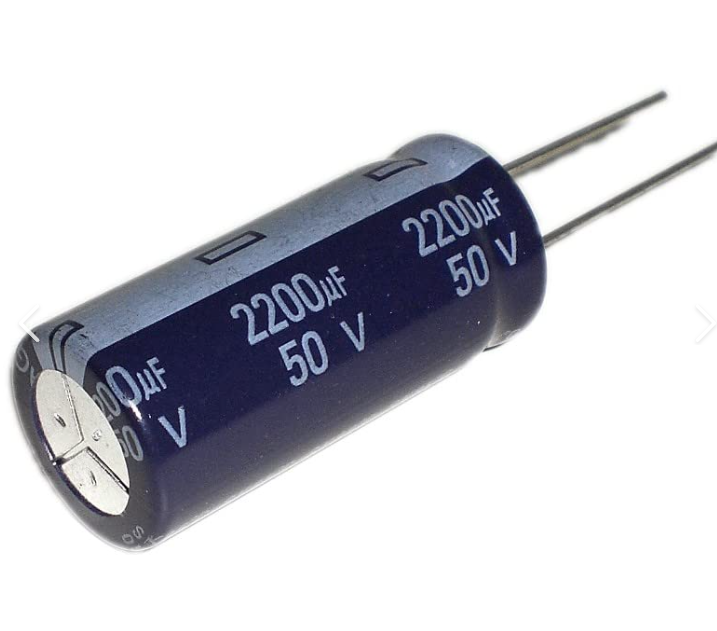

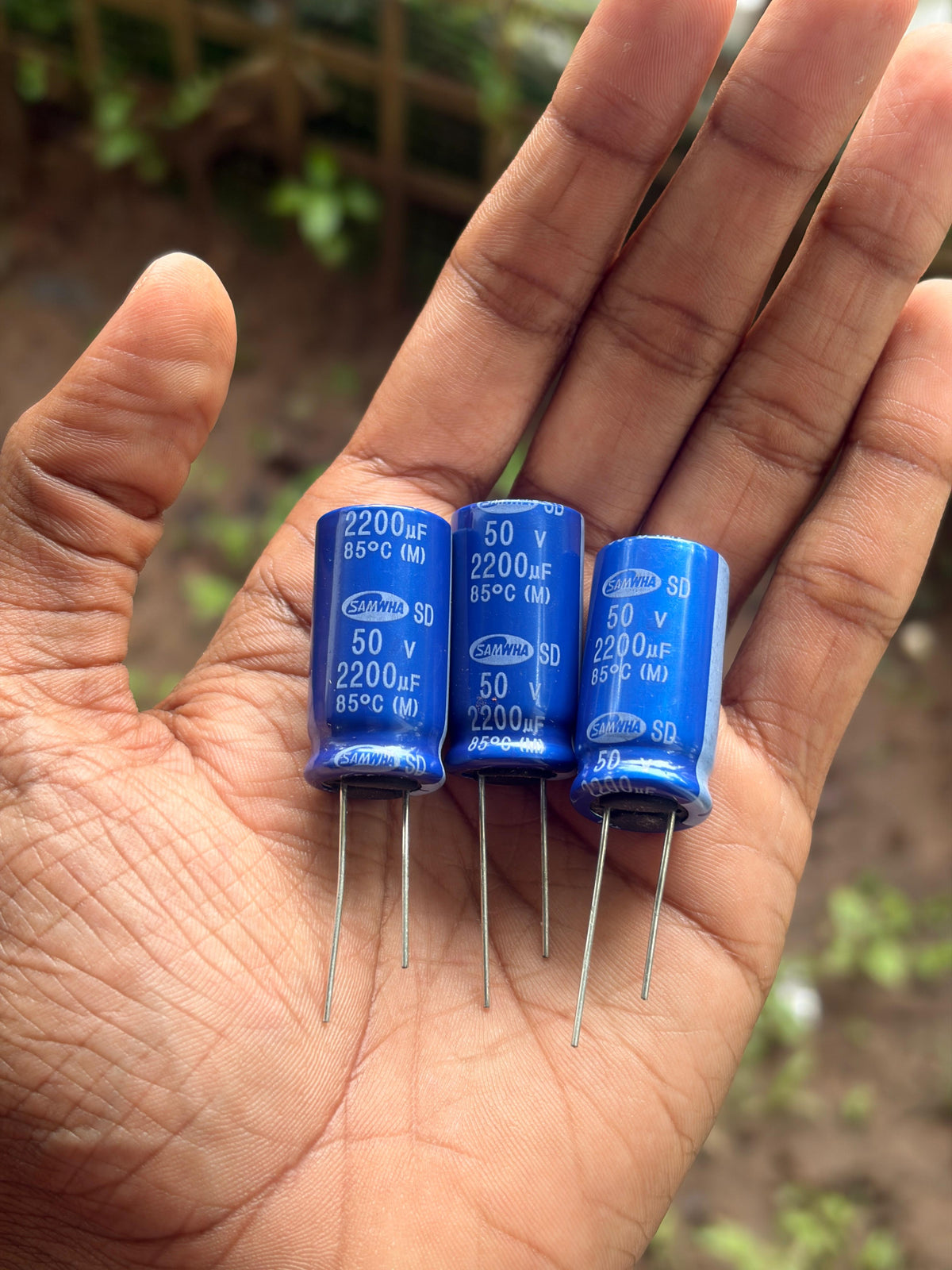

2200uF 50V Electrolytic Capacitor SAMWHA 105C 2200uF 50V

Product Overview

The Samwha 2200µF 50V electrolytic capacitor is a high-capacity, polarized radial through-hole component. Typically belonging to Samwha's high-reliability, long-life series (such as the WL or WB series), this component features an upgraded 105°C thermal rating. It is specifically engineered for heavy-duty bulk energy storage, DC voltage smoothing, and high ripple current filtering in high-temperature or high-stress environments.

With its robust 2200µF capacitance and 50V threshold, it is heavily used in the output filtration stages of high-power Switched-Mode Power Supplies (SMPS), audio amplifier power reservoirs, industrial automation control boards, and car audio stiffening circuits.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 2200µF (Microfarads)

• Voltage Rating: 50V DC

• Tolerance: ±20%

• Temperature Rating: Up to 105°C (High-Temperature/High-Reliability Grade)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 16mm Diameter x 25mm to 31.5mm Height (Note: Casing length can vary slightly depending on the exact sub-series manufacturing run)

• Lead Pitch (Spacing): 7.5mm
