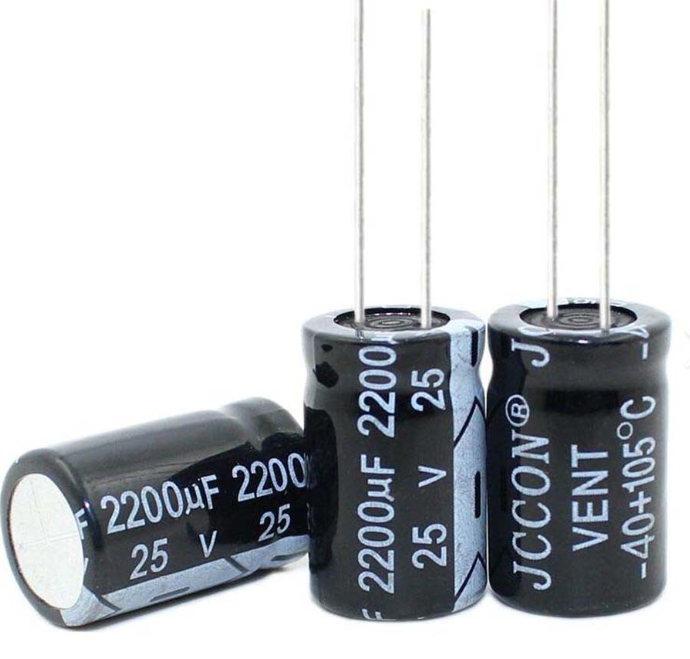

2200uF 25V Electrolytic Capacitor JWCO 105C 13x21MM 20% 2200uF 25V

Product Overview

The JWCO 2200µF 25V electrolytic capacitor is a high-capacity, polarized aluminum through-hole component. Sized at 13x21mm, this capacitor features an upgraded 105°C thermal rating (typically from JWCO's high-reliability lines like the KM series), making it highly resilient against ambient heat environments.

It is designed for bulk energy storage, secondary DC voltage smoothing, and ripple current filtering. Its rugged thermal specification makes it a reliable choice for audio amplifier power reservoirs, motherboard power rails, game console restorations, and secondary filtration stages in power supply units.

Core Specifications

• Manufacturer: JWCO (Jiaweicheng Electronics)

• Capacitance: 2200µF (Microfarads)

• Voltage Rating: 25V DC

• Tolerance: ±20%

• Temperature Rating: Up to 105°C (High-Temperature Grade)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 13mm Diameter x 21mm Height

•
