2 PIN Push button Switch G-Switch PS-5850DDA

Product Specifications

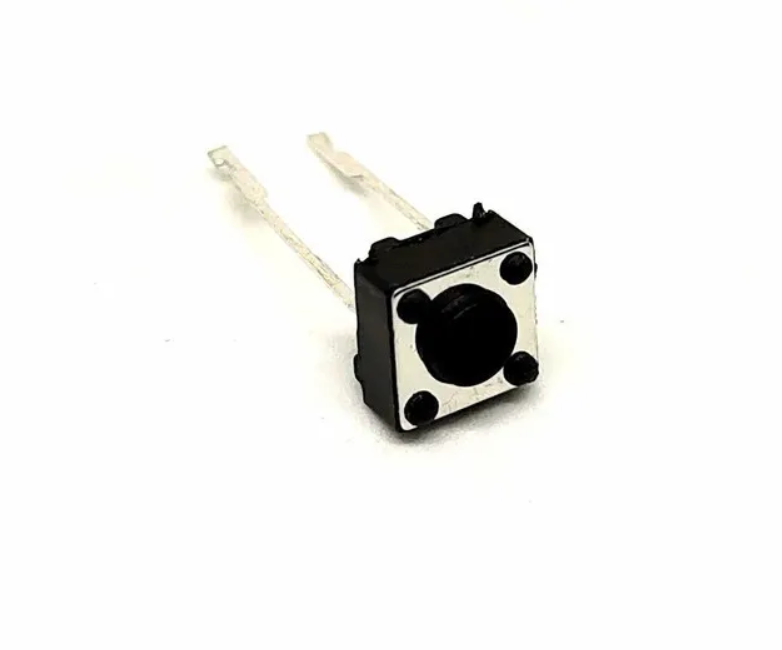

• Product Name: G-Switch PS-5850DDX-2PN Push Button Switch

• Part Number: PS-5850DDX-2PN

• Brand: G-Switch

• Type: Push Button Switch

• Pin Configuration: 2-Pin

• Rating: 0.5A @ 24V DC

• Contact Resistance: ≤100mΩ

• Insulation Resistance: ≥100MΩ

• Operating Temperature: -40°C to +85°C

• Switch Life: 30,000 Cycles

• Switch Height: 5.0mm

• Switch Travel: 0.7±0.2mm

• Mounting: PCB / DIP Type
