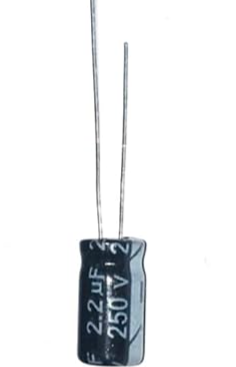

2.2uF 250V Electrolytic Capacitor 85c KELTRON 2.2uF 250V

Product Overview

The 2.2uF 250V KELTRON Electrolytic Capacitor 85c ET9654 is a polarized, miniature aluminum radial through-hole component built for high-voltage DC applications. Engineered by Keltron, a well-established brand in the passive components market, it is designed for precise voltage smoothing, analog signal filtering, and noise decoupling in high-voltage electronic assemblies.

Its high 250V voltage rating makes it an ideal fit for primary-side power rails, compact Switched-Mode Power Supplies (SMPS), control boards, instrumentation panels, and lighting/LED drivers.

Core Specifications

• Manufacturer: Keltron

• Capacitance: 2.2µF

• Voltage Rating: 250V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max

• Series / Part Identifier: Typically featured in the SA Series (General Purpose High Voltage)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 6.3mm Diameter x 11mm Height (Standard ultra-miniature layout)

• Lead Pitch (Spacing): 2.5mm

• Lead Diameter: 0.5mm
