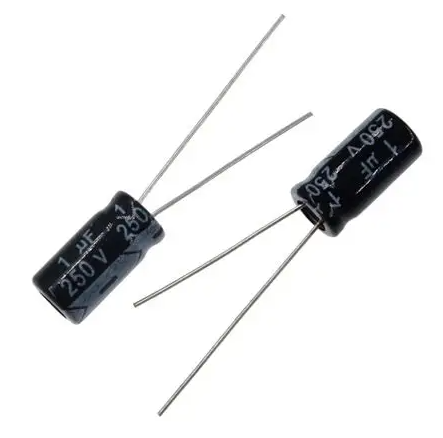

1uF 250V Electrolytic Capacitor SAMWHA 1uF 250V

Product Overview

The Samwha 1µF 250V electrolytic capacitor is a high-voltage, polarized miniature aluminum radial component. Typically designated within Samwha's general-purpose standard SD series or similar high-voltage miniature lines, this device is optimized for applications demanding low capacitance coupled with a strong voltage tolerance.

Its 250V DC rating makes it an excellent choice for primary or secondary voltage smoothing, start-up circuits, signal coupling, and decoupling on medium- to high-voltage rails found in SMPS power supplies, LED drivers, electronic ballasts, and home appliances.

Core Specifications

• Manufacturer: Samwha Electric Co.

• Capacitance: 1µF (Microfarad)

• Voltage Rating: 250V DC

• Tolerance: ±20%

• Temperature Rating: Available in 85°C Max (Standard SD series) or upgraded 105°C variants based on batch series

• Mounting Style: Radial Through-Hole (THT)

• Physical Dimensions: 6mm Diameter x 11mm Height (Standard case code variant)

• Lead Pitch (Spacing): 5mm
