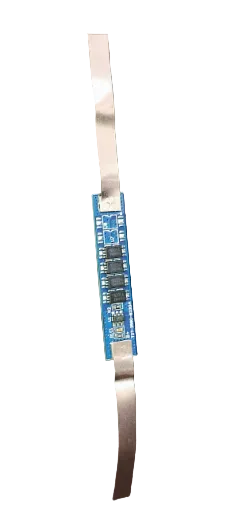

1S 6A BMS Module TDT 3.2V lithium phosphate battery LFP 1S6A32

Technical Specifications

• Mode: TDT-4S-8063 6A
• input Voltage B+ to B-: -0.3~+24V
• Overcharge Detection voltage/1CELL: 4.25±0.05V
• Over discharge Detection voltage/1CELL: 2.7±0.1V
• suggest working temperature: -20°C~+60°C
• Over current 17~23A

Key Features

• Single Cell (1S) LiFePO₄ Compatibility

• 6A Continuous Discharge Current – Ideal for low to medium power loads

• Integrated Safety Functions

• Overcharge Protection

• Over-discharge Protection

• Overcurrent and Short Circuit Protection

• Ultra-Slim Design – Space-saving PCB with soldered nickel strips for seamless pack assembly

• Smart Auto-Recovery – Intelligent reset circuit for convenience after fault clearance

• Plug-and-Play Use – Pre-soldered nickel tabs for quick welding in DIY or production setups
