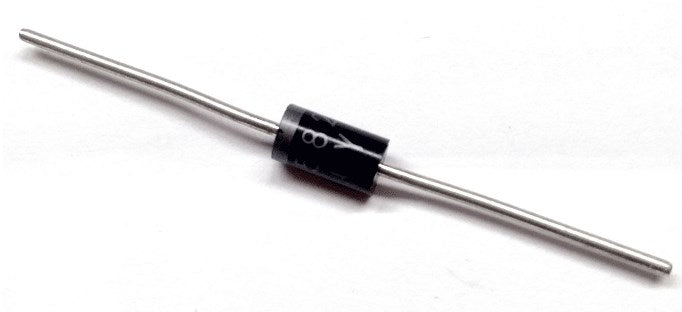

1N5822 HORNBY 40V 3A SCHOTTKY DIODE 1N-5822

Product Overview

1. The 1N5822 is a Schottky barrier rectifier utilizing a metal silicon junction for high efficiency, enclosed in a DO-201AD molded plastic body with plated axial leads.

2. This diode is rated for a maximum average forward rectified current of 3.0 A and features high current and surge capabilities.

3. For this specific model, the maximum repetitive peak reverse voltage and maximum DC blocking voltage are both specified at 40 V, with a non-repetitive peak reverse voltage of 48 V.

4. It incorporates an integrated guardring for overvoltage protection and is designed for low-voltage, high-frequency inverters, freewheeling, and polarity protection applications.
