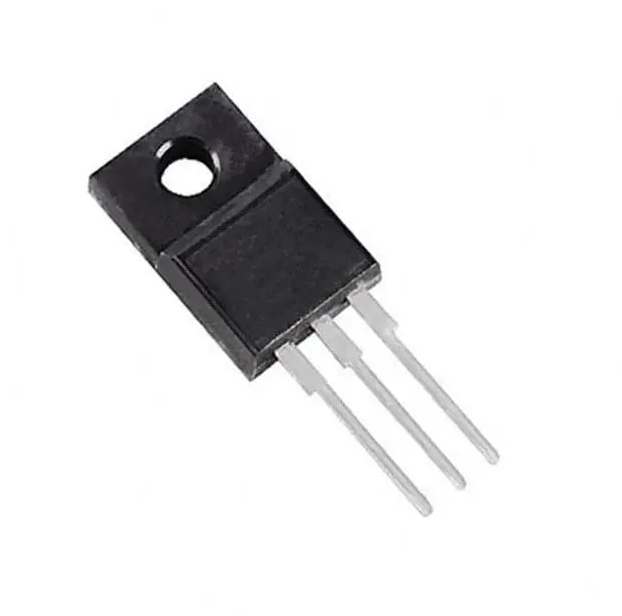

18NM60L-TF1-T MOSFET TO-220F UTC 18A 600V UTC 18NM60L-TF1-T

Product Overview:

A through-hole N-Channel Super-Junction Power MOSFET engineered for high-voltage, high-speed switching applications. Utilizing an advanced super-junction architecture, this device achieves an exceptionally low on-state resistance ($R_{DS(on)}$) and a reduced gate charge compared to conventional planar tech, optimizing efficiency and minimizing both conduction and switching power losses.

Packaged in a fully isolated TO-220F (Full-Pack) enclosure, it eliminates the need for separate insulation hardware when mounting to a standard heatsink. It features high dynamic $dv/dt$ ruggedness and robust avalanche characterization, making it highly suitable for power management environments like AC-DC converters, switch-mode power supplies (SMPS), active power factor correction (PFC), and pulse-width modulation (PWM) applications.

Core Specifications:

• Manufacturer: UTC (Unisonic Technologies Co., Ltd.)

• Package Type: TO-220F (Isolated Full-Pack)

• Function: N-Channel Super-Junction Power MOSFET

• Maximum Drain-Source Voltage: 600V

• Continuous Drain Current: 18A (at 25°C) / 11.4A (at 100°C)

• Specific Variant: 18NM60L-TF1-T
