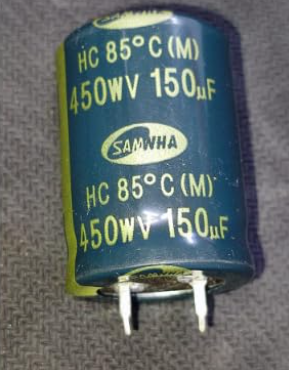

150uF 450V Electrolytic Capacitor 150uF 450V

Product Overview

The 150µF 450V electrolytic capacitor is a heavy-duty, high-voltage polarized through-hole component. Typically manufactured in large radial leaded or "snap-in" form factors, this capacitor is engineered specifically for primary-side AC mains rectification, bulk energy storage, and Power Factor Correction (PFC) filtering in robust power systems.

Because rectified 220V/240V AC mains power produces a DC bus voltage of approximately 310V to 340V DC, a 450V rating is the industry standard required to provide the necessary safety headroom against line voltage fluctuations and transient surges in Switch-Mode Power Supplies (SMPS), industrial inverters, and motor drives.

Core Specifications

• Capacitance: 150µF (Microfarads)

• Voltage Rating: 450V DC (High-Voltage Grade)

• Tolerance: ±20% (Standard)

• Temperature Rating: Typically 85°C (Standard) or 105°C (High-Temperature/Long-Life Grade)

• Mounting Style: Radial Leaded Through-Hole (THT) or Snap-In Terminals

• Physical Dimensions: High-variance depending on series; typically ranges from 22mm to 25mm Diameter x 30mm to 45mm Height

• Lead Pitch (Spacing): Typically 7.5mm
