10UF 63V Electrolytic Capacitor SAMWHA 85C 10UF 63V

Product Overview

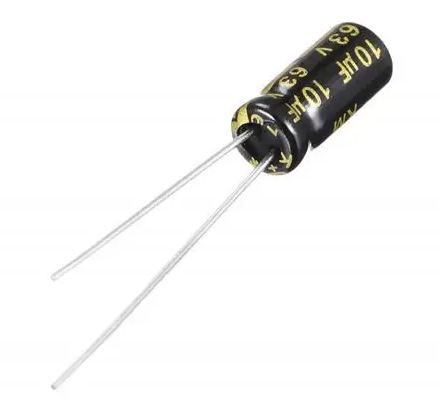

The Samwha 10µF 63V electrolytic capacitor is a high-voltage, compact polarized aluminum through-hole component. Typically part of Samwha’s reliable general-purpose lines (such as the standard SD series), this capacitor is specifically engineered for analog signal coupling, DC decoupling, and high-frequency noise suppression.

Due to its high 63V rating and moderate capacitance, it is frequently used in sensitive analog audio circuits, sensor signal paths, and low-current power regulation stages where a robust voltage buffer is required.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 10µF (Microfarads)

• Voltage Rating: 63V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max (Standard SD variant)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 5mm to 6.3mm Diameter x 11mm Height

• Lead Pitch (Spacing): 2mm to 2.5mm
