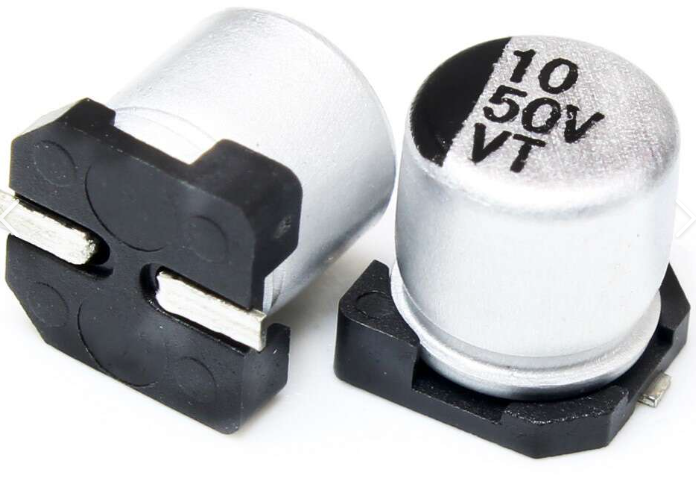

10uf 50V SMD Electrolytic Capacitors 5x5.4mm JWCO Aluminum 10uf 50V

Product Overview

A miniature, high-voltage surface-mount aluminum electrolytic capacitor (V-chip style) manufactured by JWCO. Designed for high-density layouts that operate at elevated voltages, this component offers a balance of reliable, high-voltage tolerance and a compact footprint. It is primarily utilized for signal coupling, DC blocking, and localized low-frequency filtering in space-constrained industrial controllers, sensor interfaces, and compact high-voltage power modules.

Core Specifications

• Manufacturer: JWCO (Jiaweicheng Electronic Co., Ltd.)

• Component Type: Aluminum Electrolytic Capacitor

• Capacitance: 10 µF (Microfarads)

• Voltage Rating: 50V DC

• Tolerance: Typically ±20%

• Package / Case Size: 5 mm x 5.4 mm (5mm Base Diameter by 5.4mm Can Height; Size Code: 0505)

• Mounting Type: Surface Mount Device (SMD) / V-Chip Base Plate

• Polarity: Polarized
