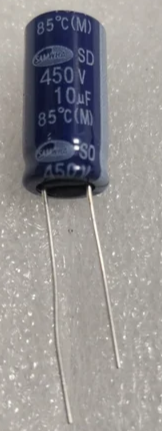

10uF 450V Electrolytic Capacitor 85C 10MFD SAMWHA 10uF 450V

Product Overview

The Samwha 10µF 450V electrolytic capacitor (typically from the reliable SD series) is a high-voltage, polarized radial through-hole component. It is engineered for DC voltage smoothing, primary filtering, and ripple current suppression. Due to its high 450V DC rating, it is frequently found in the primary-side stages of Switched-Mode Power Supplies (SMPS), electronic ballasts, and LED drivers.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 10µF (also marked as 10 MFD)

• Voltage Rating: 450V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 10mm Diameter x 20mm to 21mm Height

• Lead Pitch (Spacing): 5mm
