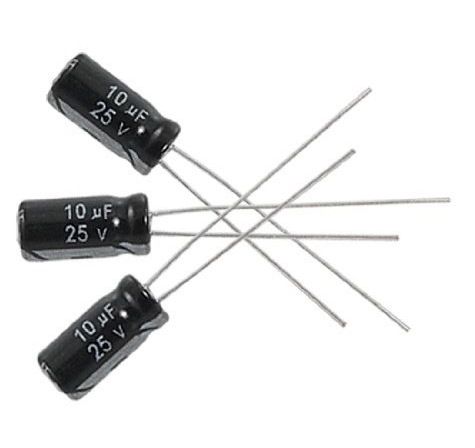

10uF 25V Electrolytic Capacitor 105C 5X11mm JWCO 10uF 25V

Product Overview

The JWCO 10µF 25V electrolytic capacitor is a sub-miniature, polarized radial through-hole component. Featuring an upgraded 105°C thermal rating, this capacitor is designed for DC voltage decoupling, signal bypassing, and low-frequency noise filtering in low-voltage electronic circuits.

With its ultra-compact 5x11mm physical footprint, it is an excellent space-saving choice for space-constrained electronics, such as small sensor modules, consumer electronic boards, and timing circuits where vertical and horizontal board clearances are tightly limited.

Core Specifications

• Manufacturer: JWCO (Jiaweicheng Electronics)

• Capacitance: 10µF (Microfarads)

• Voltage Rating: 25V DC

• Tolerance: ±20%

• Temperature Rating: Up to 105°C (High-Temperature Grade)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 5mm Diameter x 11mm Height

• Lead Pitch (Spacing): 2mm to 2.5mm
