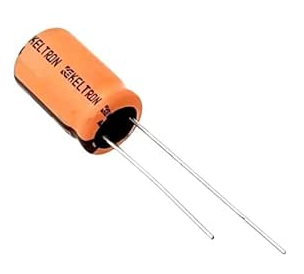

100uF 50V Electrolytic Capacitor KELTRON 85C 20% 100uF 50V

Product Overview

The Keltron 100µF 50V electrolytic capacitor is a polarized, radial leaded through-hole component designed for general-purpose electronic applications. Typically utilized in filtering and power management circuits, this capacitor is engineered for DC voltage decoupling, power rail smoothing, and low-to-medium frequency signal filtering.

With a balanced 100µF capacitance and a 50V rating, it serves as an excellent intermediate filtering component for power supplies, motor controllers, and audio amplification circuits operating on standard mid-voltage DC rails.

Core Specifications

• Manufacturer: Keltron

• Capacitance: 100µF (Microfarads)

• Voltage Rating: 50V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max (Standard Grade)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 8mm Diameter x 11.5mm Height

• Lead Pitch (Spacing): 3.5mm
