100uF 35V Electrolytic Capacitor SAMWHA 100uF 35V

Product Overview

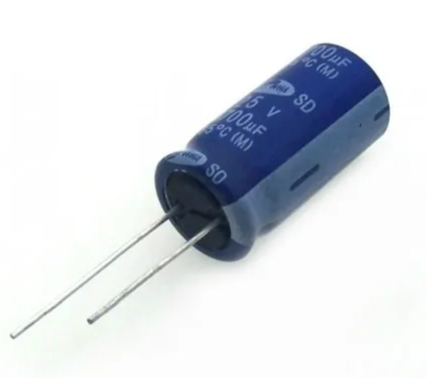

The Samwha 100µF 35V electrolytic capacitor is a polarized, radial leaded through-hole component. Belonging to Samwha’s reliable general-purpose lines (such as the standard SD Series), this capacitor is optimized for DC voltage decoupling, signal bypassing, noise filtering, and intermediate energy storage.

Its versatile 35V rating and 100µF capacity make it a staple part in power adapter secondary paths, audio sub-circuits, telecommunication equipment, and automotive accessory modules.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 100µF (Microfarads)

• Voltage Rating: 35V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max (Standard SD variant)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 6.3mm Diameter x 11mm Height

• Lead Pitch (Spacing): 2.5mm
