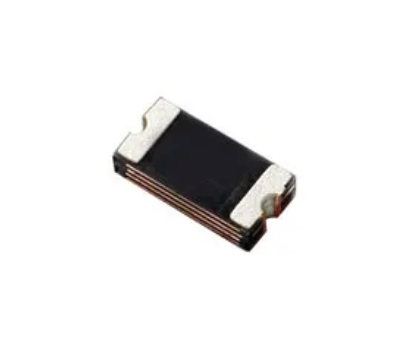

100mA 60V SMD Resettable PPTC Fuse 1812 JK-mSMD010/60V JK010

Key Features:

• Part Number: JK-nSMD010/60V
• Manufacturer: Jinrui
• Component Type: PTC Resettable Fuse
• Hold Current: 100mA
• Trip Current: 250mA
• Maximum Voltage: 60V
• Package: 1206
• Marking Code: JN
• Resistance at 25°C: 1.6Ω
• Maximum Post-Trip Resistance: 15Ω
• Maximum Time to Trip: 1s
• Dimensions: 3.5 × 1.8 × 1.1mm
• Operating Temperature: -40°C to +85°C
