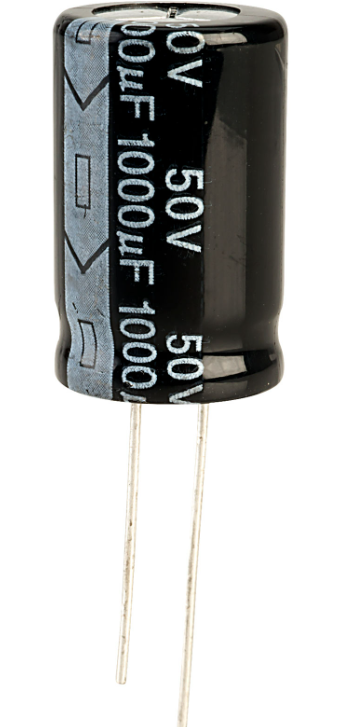

1000uF 50V Electrolytic Capacitor Radial SAMWHA 1000uF 50V

Product Overview

The Samwha 1000µF 50V electrolytic capacitor is a high-capacity, polarized radial through-hole component. Belonging to Samwha's general-purpose, high-reliability lines (such as the standard SD series), this capacitor is engineered for bulk energy storage, high DC voltage smoothing, and ripple current filtering.

With its robust combination of a 1000µF capacity and a 50V rating, it is a staple component in audio amplifier power stages, mid-voltage power supply outputs, rectification circuits, and industrial control equipment.

Core Specifications

• Manufacturer: Samwha Electric Co., Ltd.

• Capacitance: 1000µF (Microfarads)

• Voltage Rating: 50V DC

• Tolerance: ±20%

• Temperature Rating: 85°C Max (Standard SD variant; 105°C specialized variations exist under different series codes)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: Typically 12.5mm Diameter x 20mm to 25mm Height

• Lead Pitch (Spacing): 5mm
