1000uF 25V Electrolytic Capacitor JWCO 10x17mm 105C 1000uF 25V

Product Overview

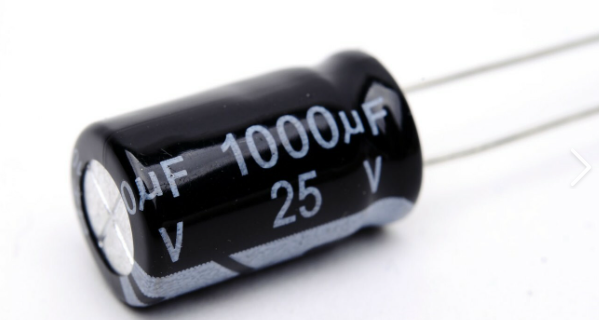

The JWCO 1000µF 25V electrolytic capacitor is a high-capacitance, polarized radial through-hole component. Featuring an upgraded 105°C thermal rating, this capacitor is engineered for bulk energy storage, secondary DC voltage smoothing, and ripple current filtering.

With its 10x17mm form factor, this unit is a standard size for mid-range power supply filtering. It is an ideal choice for filtering voltage rails in audio amplifiers, computer peripherals, and medium-voltage DC power supply output stages where consistent thermal reliability is required.

Core Specifications

• Manufacturer: JWCO (Jiaweicheng Electronics)

• Capacitance: 1000µF (Microfarads)

• Voltage Rating: 25V DC

• Tolerance: ±20%

• Temperature Rating: Up to 105°C (High-Temperature Grade)

• Mounting Style: Radial Leaded Through-Hole (THT)

• Physical Dimensions: 10mm Diameter x 17mm Height

• Lead Pitch (Spacing): 5mm
