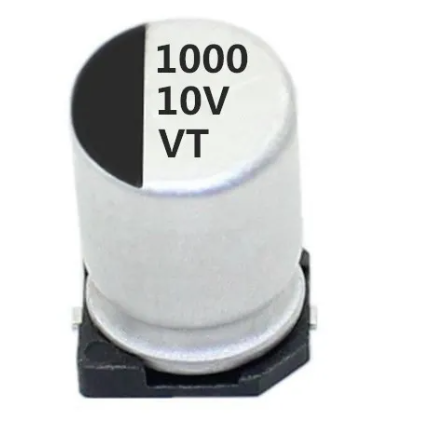

1000UF 10V SMD ELECTROLYTIC CAPACITOR JWCO 10x10.2MM 1000UF 10V

Product Overview

A high-density, low-ESR surface-mount aluminum electrolytic capacitor (V-chip style) manufactured by JWCO. Housed in a 10mm diameter casing optimized for enhanced thermal dissipation and high ripple current handling, this component provides a massive 1000 µF energy reservoir. It is ideal for bulk decoupling, input/output smoothing, and low-frequency filtering on high-load, low-voltage digital power distribution networks.

Core Specifications

• Manufacturer: JWCO (Jiaweicheng Electronic Co., Ltd.)

• Component Type: Aluminum Electrolytic Capacitor

• Capacitance: 1000 µF (Microfarads)

• Voltage Rating: 10V DC

• Tolerance: Typically ±20%

• Package / Case Size: 10 mm x 10.2 mm (10mm Base Diameter by 10.2mm Can Height)

• Mounting Type: Surface Mount Device (SMD) / V-Chip Base Plate

• Polarity: Polarized
