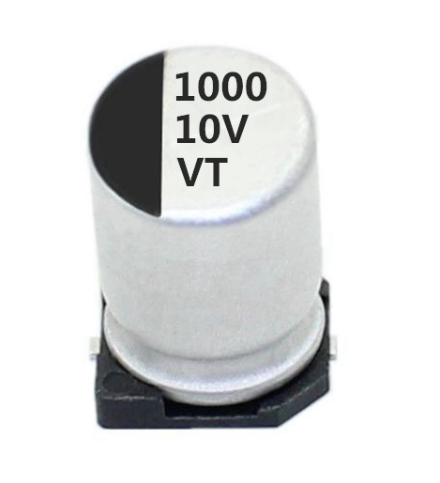

1000UF 10V ELECTROLYTIC CAPACITOR SMD JWCO 8x10.2MM 1000UF 10V

Product Overview

A high-density surface-mount aluminum electrolytic capacitor (V-chip style) manufactured by JWCO. Optimized for applications requiring substantial energy reservoirs in a constrained footprint, this component offers a massive capacitance-to-volume ratio. It is primarily deployed for bulk decoupling, heavy ripple current smoothing, and low-frequency filtering on low-voltage power distribution networks.

Core Specifications

• Manufacturer: JWCO (Jiaweicheng Electronic Co., Ltd.)

• Component Type: Aluminum Electrolytic Capacitor

• Capacitance: 1000 µF (Microfarads)

• Voltage Rating: 10V DC

• Tolerance: Typically ±20%

• Package / Case Size: 8 mm x 10.2 mm (8mm Base Diameter by 10.2mm Can Height)

• Mounting Type: Surface Mount Device (SMD) / V-Chip Base Plate

• Polarity: Polarized
