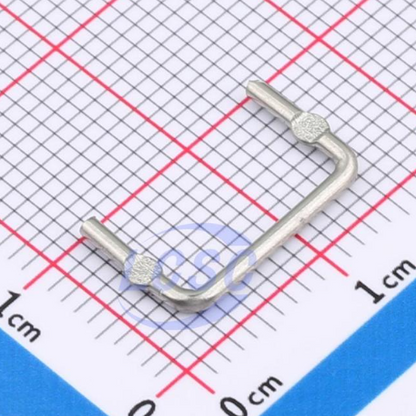

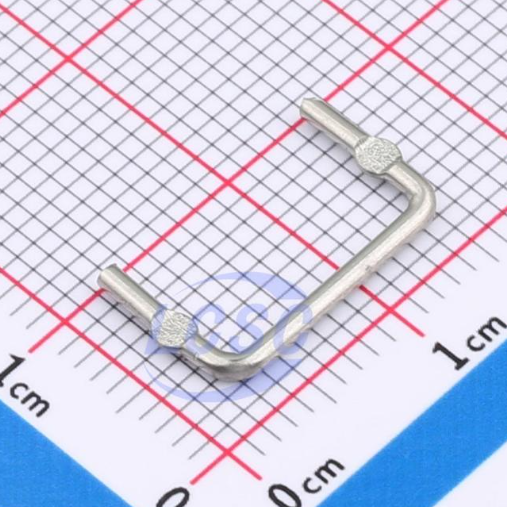

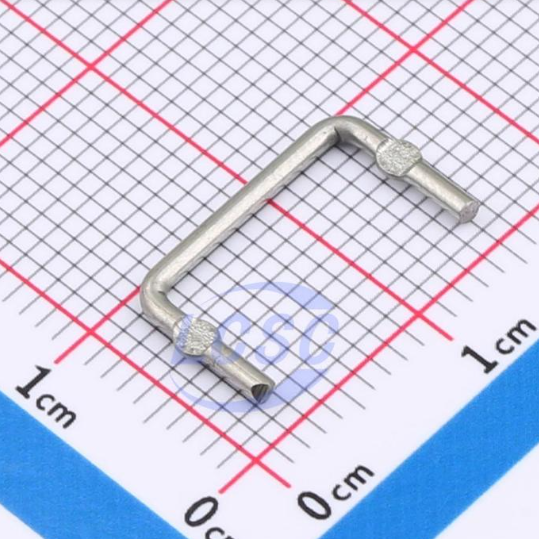

10 milli Ohm 8A Current Sense Resistor R010 HoK1212.5-10-U ±5% Milliohm

Product Features:

• U-shaped manganin resistor with 10mΩ resistance and ±5% precision
• Load current up to 8A for high-current sensing applications
• Low-inductance design with inductance below 10nH
• TCR: ±40ppm/°C for stable resistance performance
• Service temperature range: -50°C to +150°C
• High reliability and overload capability with low thermal EMF
• Suitable for current sensing, feedback circuits, power electronics, automotive electronics and communication power supplies

Manufacturer: Milliohm
Manufacturer Part Number: HoK1212.5-10-U
Package: U-Type Through-Hole Resistor P=12.5mm
Marking Code: HoK / 10mR / U
Mounting Type: Through-Hole (THT)
