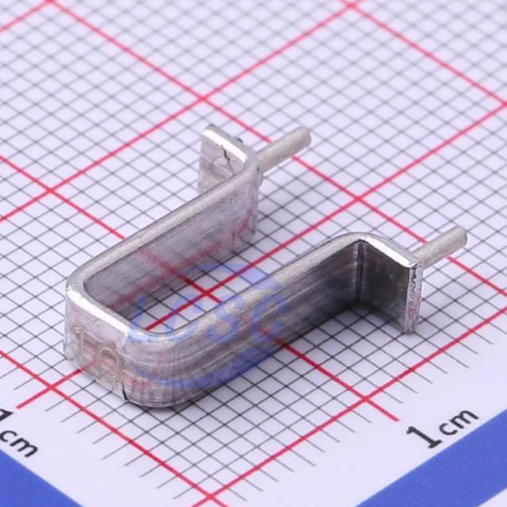

10 milli Ohm 5W R010 Current Sense Resistor HoLR-5W-10mR-1%-JZ-10 ±40ppm ±1% Milliohm

Product Features:

• 5W wire-wound power resistor with 10mΩ resistance and ±1% accuracy
• Low TCR: ≤40ppm/°C for stable resistance performance
• Low-inductance design with inductance below 10nH
• High reliability and strong overload capability for demanding applications
• Operating temperature range: -30°C to +120°C
• Suitable for current sensing, feedback circuits, high-current pulse circuits, power electronics, automotive electronics and communication power supplies
• RoHS compliant

Manufacturer: Milliohm
Manufacturer Part Number: HoLR-5W-10mR-1%-JZ-10
Package: JZ Type Wire-Wound Resistor
Marking Code: HoLR / 10mR / 1%
Mounting Type: Through-Hole (THT)
