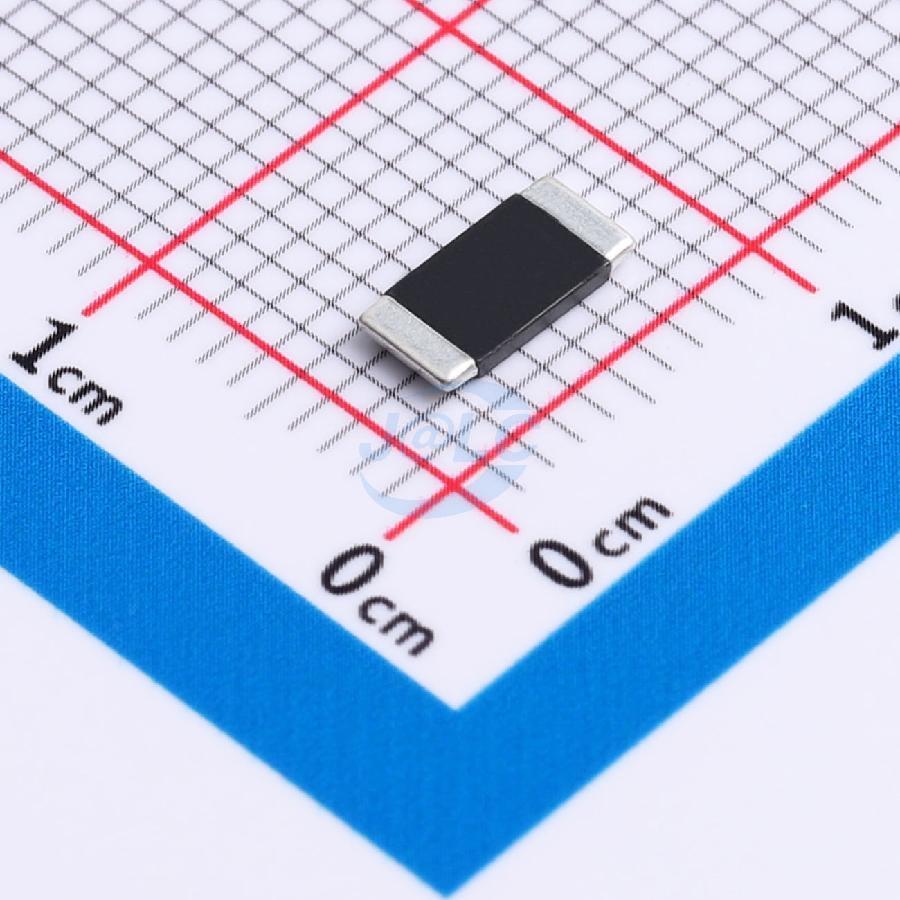

0.1 Ohm 3W 2512 SMD Resistor HIXD25NR100F 1% marking R100

Product Features:

• High power metal current sensing chip resistor.
• Rated power up to 3W.
• Low Temperature Coefficient (TCR) down to ±50ppm/°C.
• Suitable for reflow soldering and wave soldering.
• Lead-Free plating with Halogen-Free epoxy.
• RoHS compliant.
• Superior mechanical strength and excellent high-frequency characteristics.
• Operating temperature range: -55°C to +170°C.

Manufacturer: Changzhou Pengke Electronics Co., Ltd. (RVR)
Manufacturer Part Number:HIXD25NR100F
Package: 2512

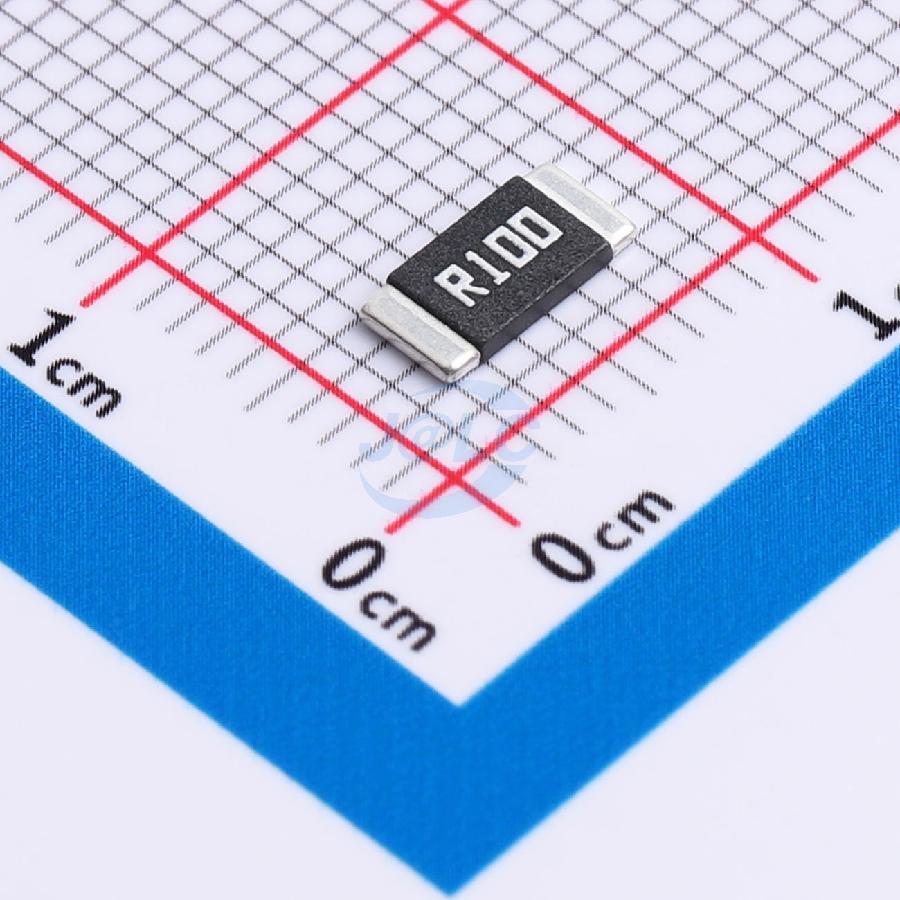

Marking Code: R100.
Mounting Type: Surface Mount (SMD)
