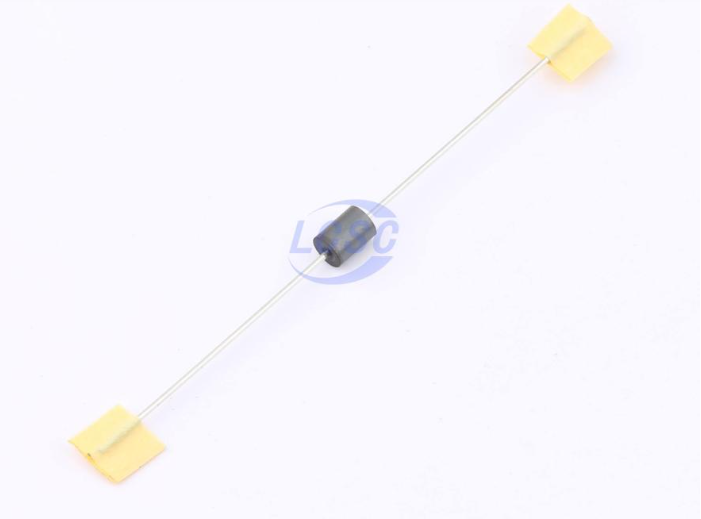

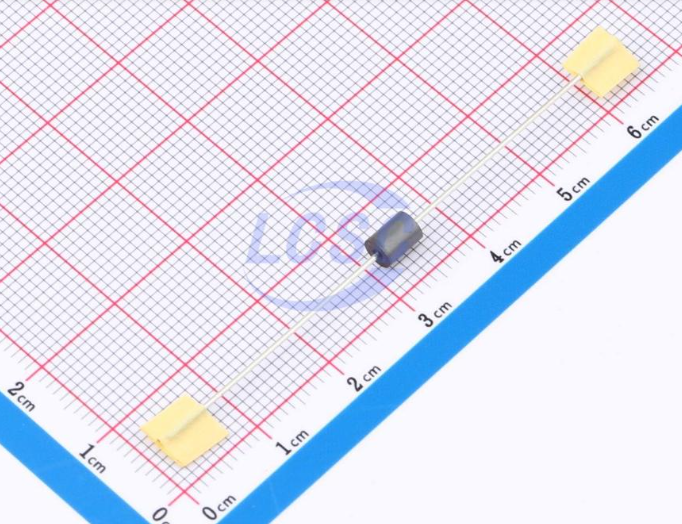

50 Ohm 1 Line Ferrite Bead @100MHz RH3.5x0.8x4.7P52E FH

Product Features:

• RH type bead core inductor for EMI suppression applications
• Ni-Zn ferrite core material
• Through-hole ferrite bead structure
• Compact size for PCB filtering applications
• Outer diameter: 3.5mm Inner diameter: 0.8mm Core length: 4.7mm
• Lead wire diameter: 0.60mm
• Impedance: 30Ω minimum @ 25MHz
• Impedance: 50Ω minimum @ 100MHz
• Effective suppression of electromagnetic interference and high-frequency noise
• Suitable for power line and signal line filtering
• Operating temperature range: -25°C to +85°C
• Storage temperature range: -20°C to +85°C
• Solder heat resistance: 270±5°C for 10±1s
• Impedance change after solder heat test: ΔZ/Z ≤ ±10%
• Solderability requirement: 95% minimum lead coverage
• Lead-free and environmentally friendly construction

Manufacturer: FH
Manufacturer Part Number: RH 3.5×0.8×4.7 P52 E
Package: Through-Hole Ferrite Bead (3.5mm × 0.8mm × 4.7mm)
Marking Code: RH
Mounting Type: Through Hole
